Integration CC+Doorbird. How to open door?

Alessandro Azzolini

3 years ago
updated 3 years ago

Hello, I'm would like to open door via DoorBird from BOS client

I imported DoorBird library example

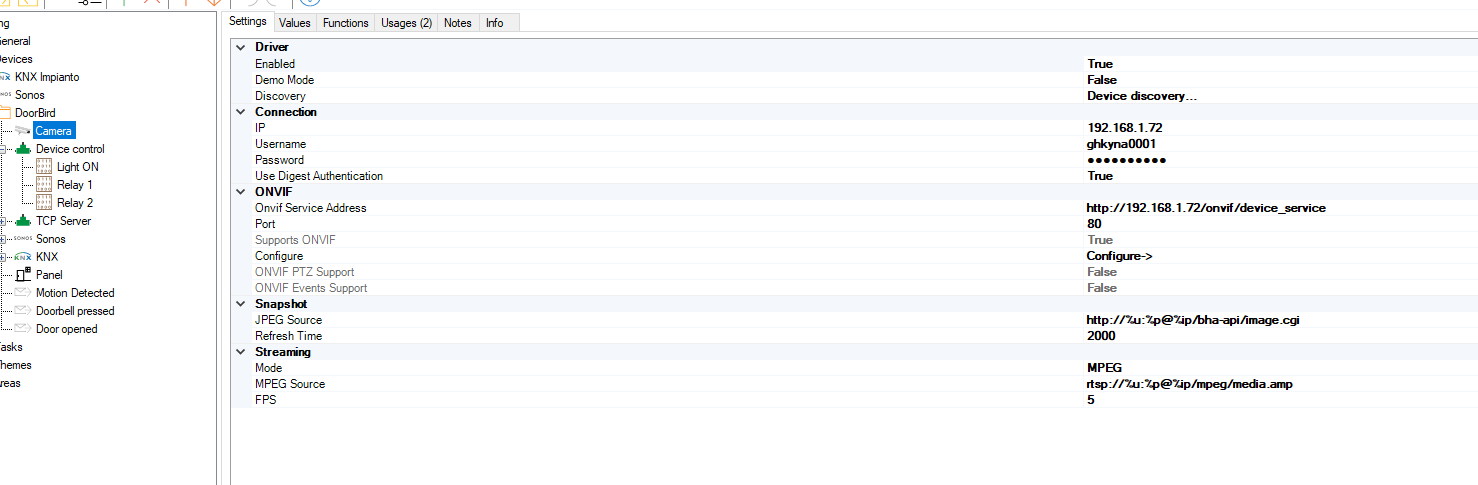

Camera integration works fine

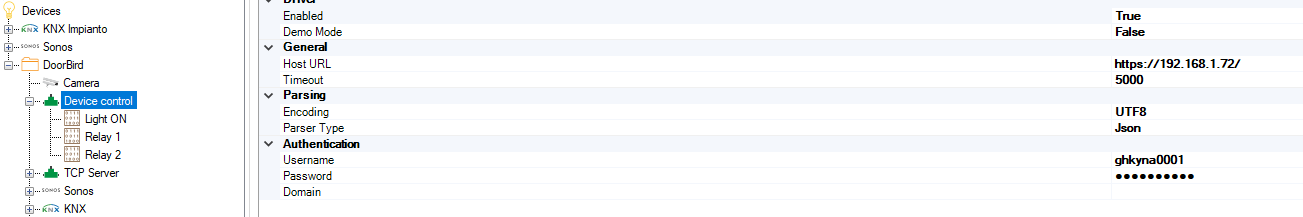

Relay 1 on Device Control (with same IP configuration) is not working

Any idea?

Many thanks in advance

Alessandro

Replies 2

Oldest first
Newest first Oldest first

Ricardo Pinto

3 years ago

Hello,

I'm not using the Doorbird example. But I can tell you that I have the lock working with an HttpRequest.

Can you confirm if the model you're using has indeed more than one relay?

I usually use the D1101V which I think it only has 1 relay. So if that's the case, probably the system is trying to execute (according to the example) the cgi command bha-api/open-door.cgi?r=1 when it should only execute bha-api/open-door.cgi without the ?r=1

If it helps, in my configuration, where I'm not using the Doorbird example:

I have a task for the lock, which is basically a HttpRequest calling http://10.0.50.210/bha-api/open-door.cgi in my configuration

Inside the HttpRequest, I've set the username and password of the unit.

And I'm done, it's working.

Try to remove the ?r=1 from the Relay 1 command under Device control and try it again.

Hope it helps.

Best regards

Reply Link

Ricardo Pinto

3 years ago

Btw, one way to be sure if the lock is working via url, is to run the url on a browser and check if it's working.

For your unit, you can try both urls, with and without the ?r=1

This way you can check if your unit needs the ?r=1

In my case, it doesn't, because the units I use only have one relay.

Hope it's useful.

Best regards
