Hi,
i try to use node control like shown in the Demo, to control settings of our heat.
i do not find any way how this work in my bos control.
in the demo, if i will add an object, it shows node control. in my development
it shows only panel link. so what do i wrong.
hope anyone can help me.
Hi, it‘s under Theme/Settings/Panel heating.
there i van set preserved, off, 3 more and sterile.
Hope this description help.
Kind regards
Hey

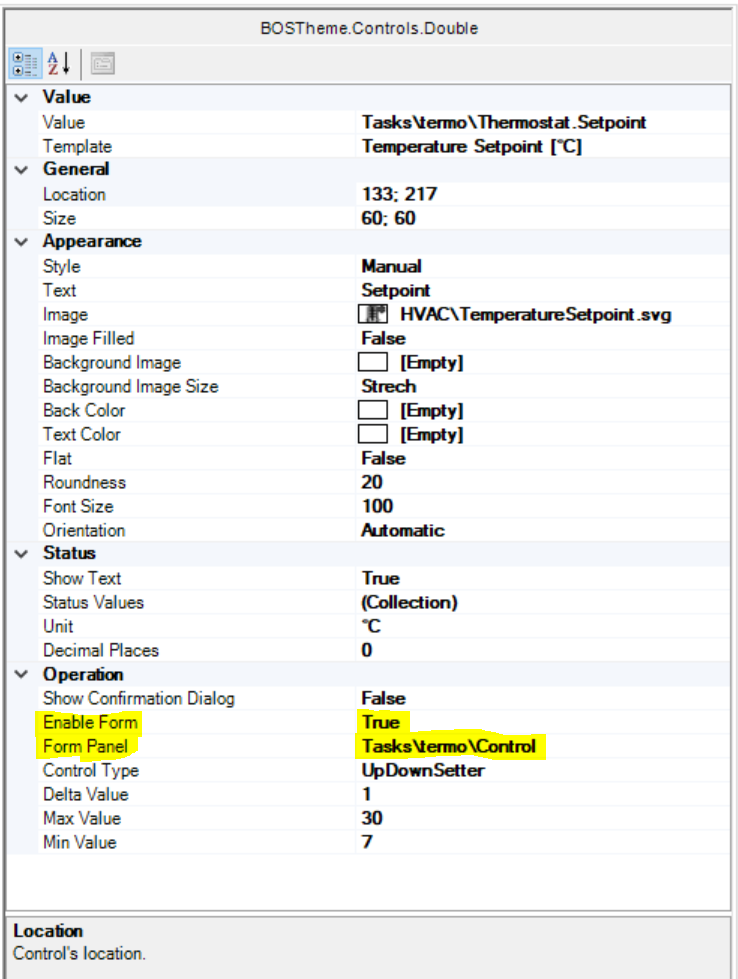

You can make a Control panel that opens in a new window if you hold the button down longer. Select the thermostat button - Set Enable Form to True.
Then make a Control panel and add your new buttons/modes in there. And Link it with the thermostats Form panel.
Hey
You can make a Control panel that opens in a new window if you hold the button down longer. Select the thermostat button - Set Enable Form to True.
Then make a Control panel and add your new buttons/modes in there. And Link it with the thermostats Form panel.
Hi Jürgen,
that's not what I try to do. I have 5 Buttons in a form.
Buttons: Anwesend, Abwesend, Schlafen and Aus.
If i click one of them, the actully Button goes from active to deactive

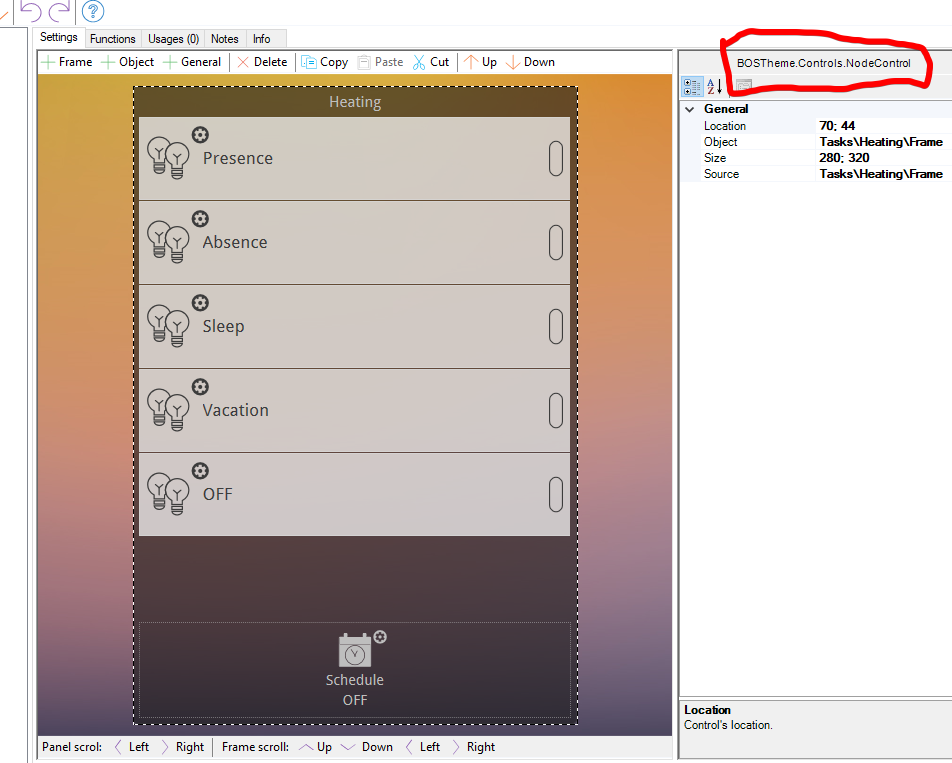

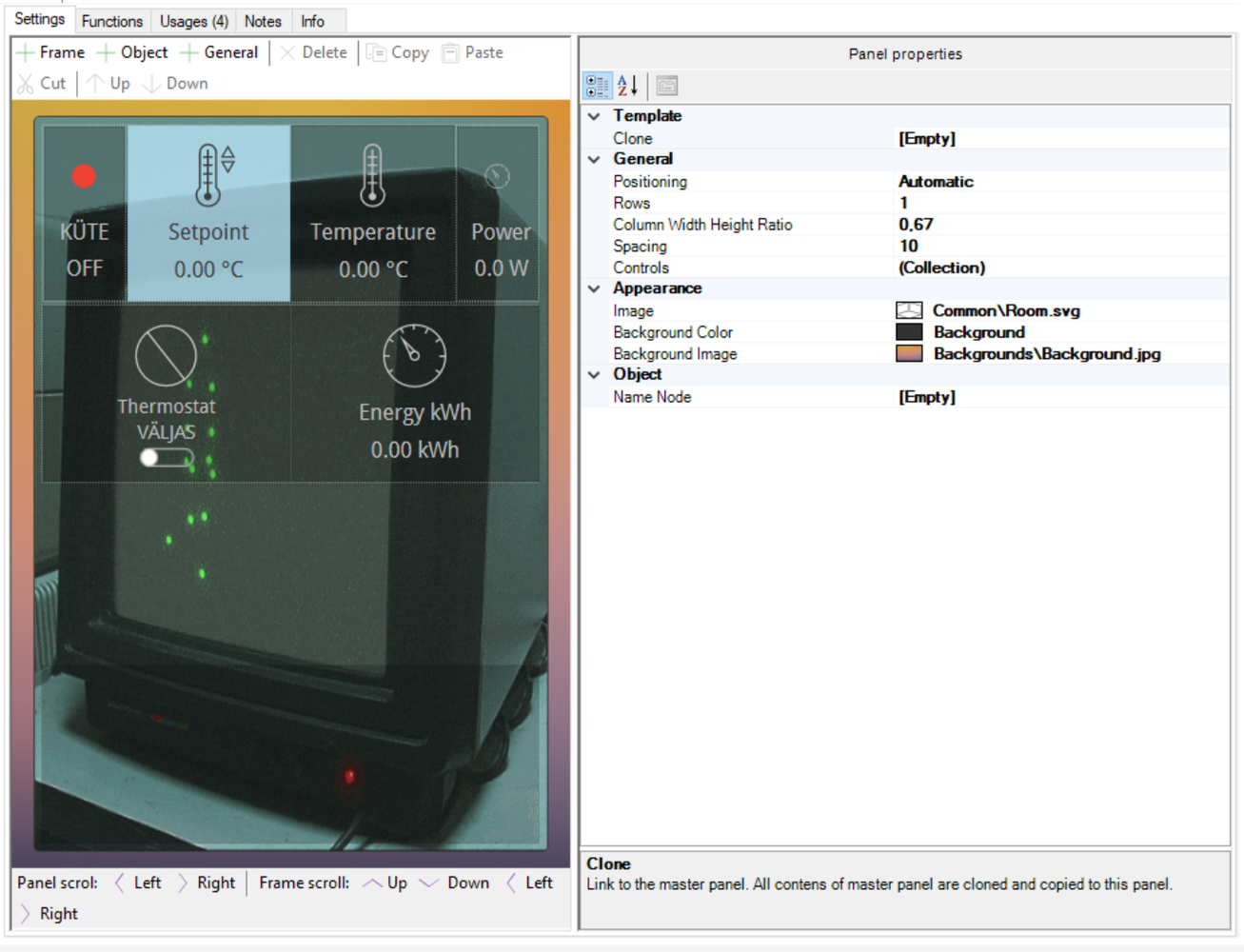

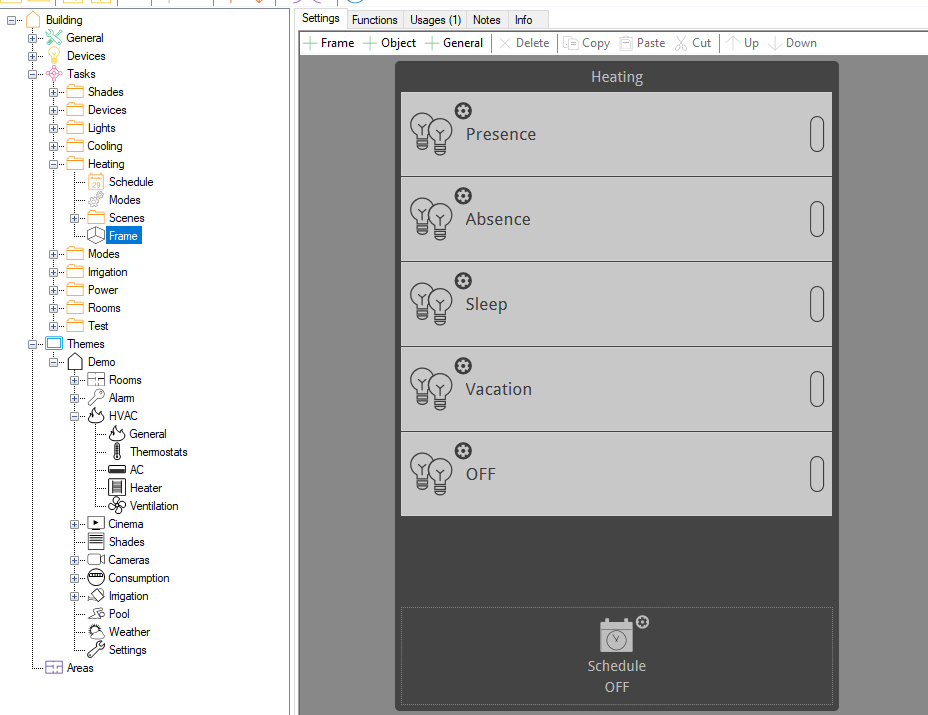

Here are two screenshots out from the demo
Hope this help's to understand what i want to do.
Kind regards
Stephan
Hi,
thank's for all your help. Now it work's like described in Jürgen's post.
Stephan
Hi,
What's the control you're seeing in the Demo?
There are two types of controls that might look similar, but actually are a little bit different:
- Mode (which can be used to enumerate values, link them to an heating mode address for example, and when pressed it shows a pop-up to choose a value between those you have defined)
- Node control (to enable a pop-up form, and have other types of controls inside that form)
Which one are you looking for? So we can guide you trough.
Best regards
