Hi,
I've configured the physical address in knx for a Jigsaw to be 1.1.63, as the last device before a line repeater.
The issue is that when I open the bus monitor in ETS, I see a lot of traffic coming from 1.1.64, which is the line repeater, but corresponds to the Jigsaw.
Why isn't it using the address I configured?
Thanks in advance
Hello,
I have a similar problem with the Jigsaw.
I set the physical address to 1.0.60 but after a few minutes when I donwload KNX device ETS ask me for change the physical address because the physical address is set automatically to 0.0.0 and I see on the bus monitor that the Jigsaw send telegram with 0.0.0.
Hello,
I have a similar problem with the Jigsaw.
I set the physical address to 1.0.60 but after a few minutes when I donwload KNX device ETS ask me for change the physical address because the physical address is set automatically to 0.0.0 and I see on the bus monitor that the Jigsaw send telegram with 0.0.0.
Hey,

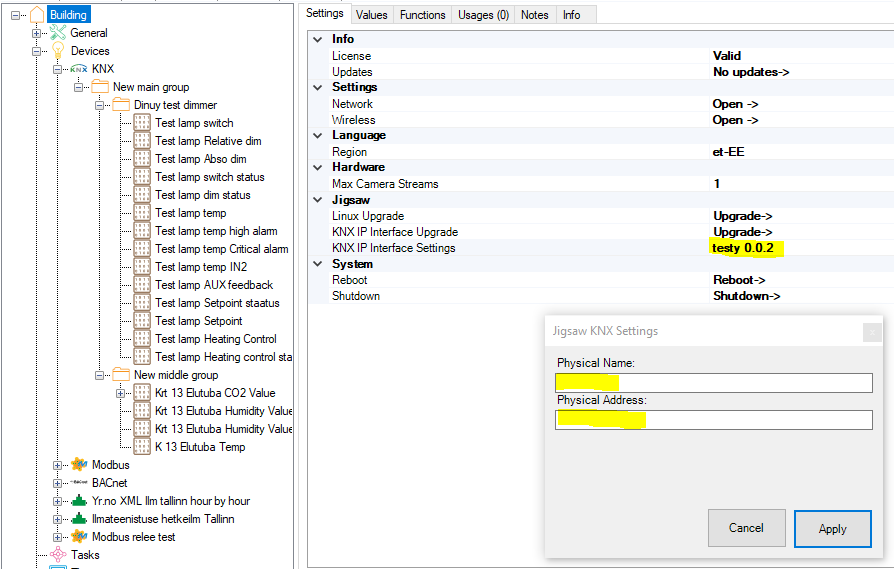

For me, it stays on the address i originally gave it 0.0.2 But when i open the settings the values are blank. On group monitor I can see that it's asking on 0.0.4 address.

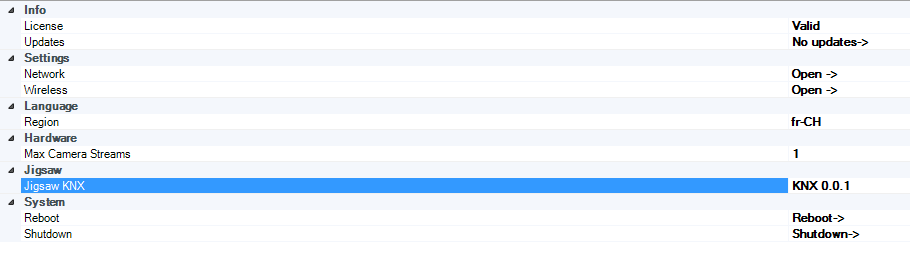

First: I see that I have not the same option in menu. Why ???
second: Have you test if you change the KNX address to 1.0.xx ?
First: I see that I have not the same option in menu. Why ???
second: Have you test if you change the KNX address to 1.0.xx ?
1. I have updated mine to the latest 4.7.22 beta version
2. Noup not yet, I will try it later and give you feedback.
1. I have updated mine to the latest 4.7.22 beta version
2. Noup not yet, I will try it later and give you feedback.
Ok, when i changed the address to 1.0.60 i lost connection to it. And device discovery is unable to find it again even if i changed it back to 0.0.2 like it was before. Rebooting jigsaw did not help. So yeah its strange.
Thanks Juïrgen for the test.
Contrariwise in my server I dont lose the connexion with another address, juste the address keep the value 0.0.0 in ETS
Now we are waiting for the response from comfortclick support.
Ok, when i changed the address to 1.0.60 i lost connection to it. And device discovery is unable to find it again even if i changed it back to 0.0.2 like it was before. Rebooting jigsaw did not help. So yeah its strange.
I'm still having trouble finding jigsaws IP gateway. For testing reasons i connected a new 731 ip gw and this is found with jigsaw right away. The internal gateway is missing, i tried restarting, changing the address nothing seems to help.
Hello,

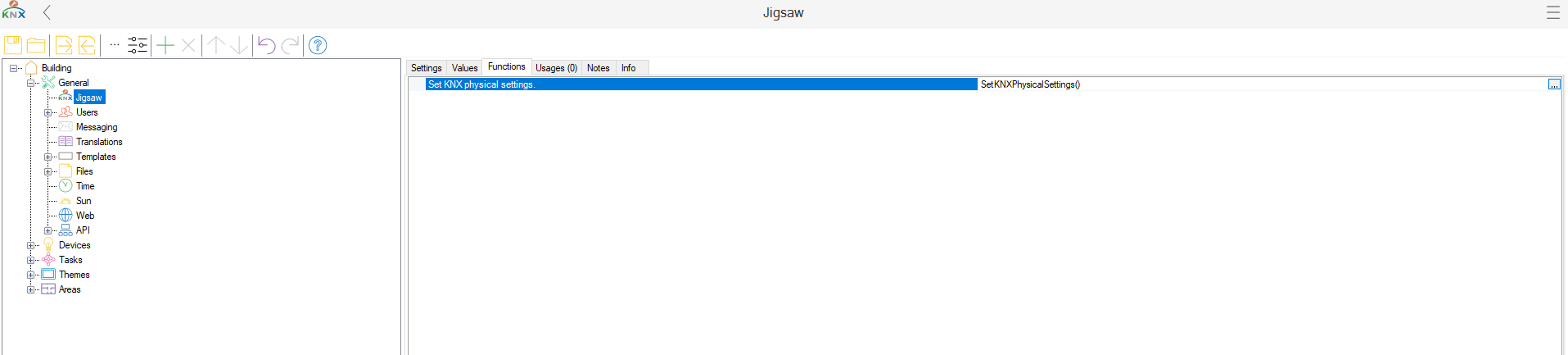

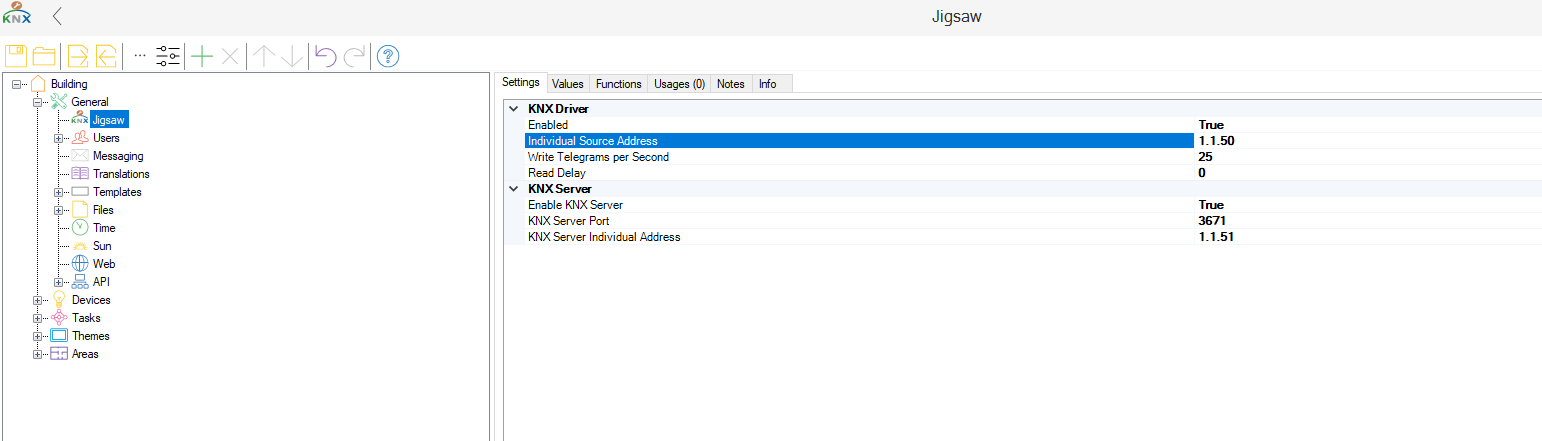

Maybe it's a strange question, but how to set physical address of Jigsaw? Changing it in KNX tab doesn't change anything, clicking [...] in KNX/Function tab does not do anything either :(
Hello,
for the Jigsaw server, it works the same way as a IP interface. It takes 8 addresses after the one set in bos (e.g. if Jigsaw interface is set to 1.1.63 it will take addresses from 1.1.64-72)
Best regards,
